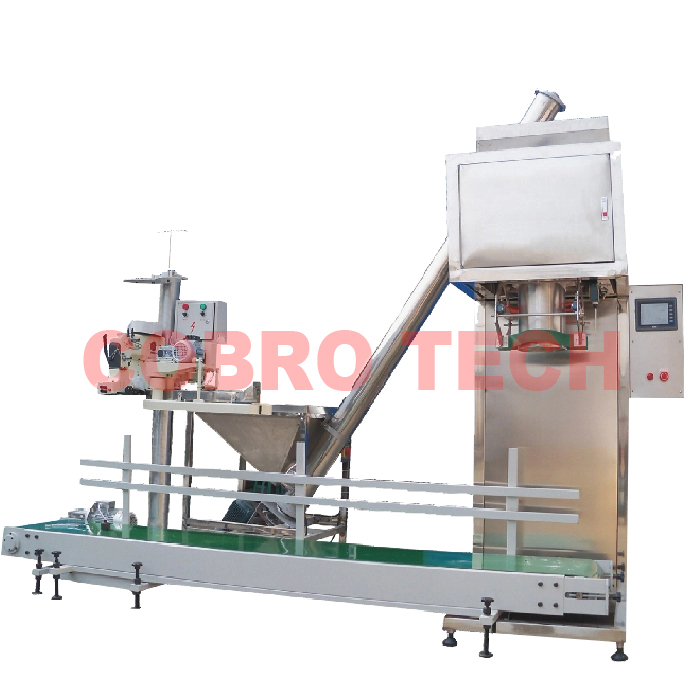

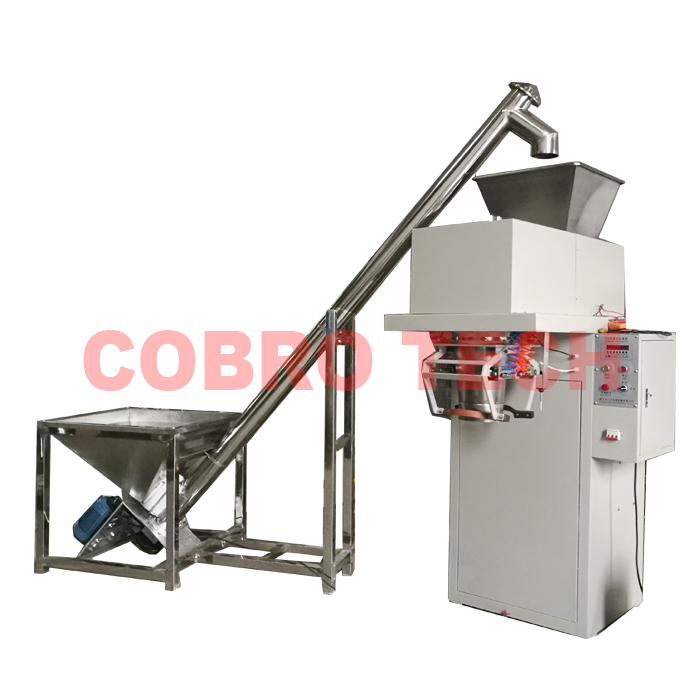

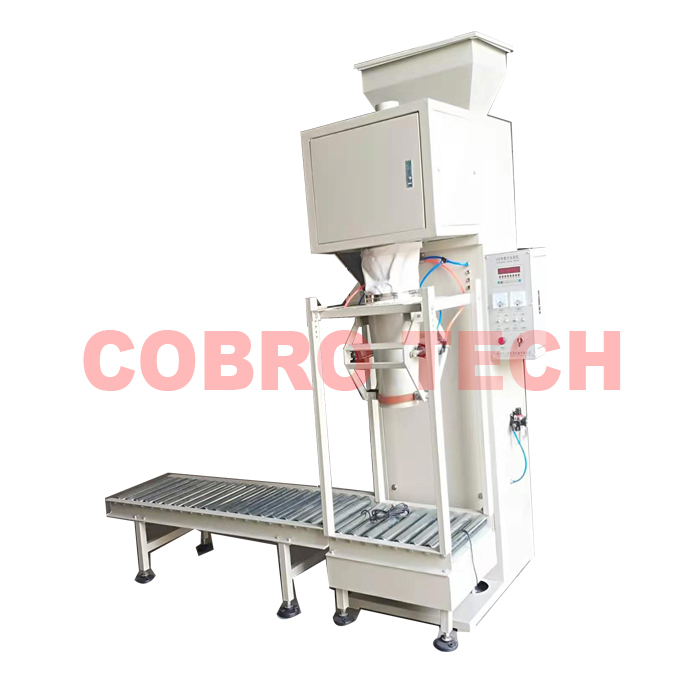

This machine consist of screw conveyor or bucket conveyor,weighing device,belt conveyor,sewning machine.The material is added into the weighing hopper by the feeding mechanism (pneumatic gate). After the controller receives the weight signal from the sensor, it controls the material according to the preset program value. When the weight is equal to target value - rough measurement value, stop fast signal output, enter the slow feeding (add and add slowly at the same time).
Technical data
Model
Capcity
Weighing range
2-50kg
Gas pressure
0.4-0.5MPa
Gas consumption
0.4 M³/Min
Power
1100W
MOC
SUS304
Application:
Rice,corn,wheat,soybean,almound,sugar,washing powder,salts,sugar,spice,red chilli,animal feed etc
