Working principle of tumbler screen
PLYS Series tumbler screen are used for the treatment of valuable powders, pellets and granules. For applications in pharmacy, food and fine chemicals produces tumbler and vibration screening machine according to GMP.

Our tumbler screeners adopt German technology

Technical and process related benefits.
-Screening efficiency up to 99%

-No particle destruction in sensitive products

-High screening quality results in higher revenues for graded products

-Higher specific screen load as compared to vibration systems

-Stable screen motion even under full load

-Product specific mesh cleaning systems

-Quick access to the screen inserts

-Modular design permits various machine modifications

-No vibration,low speed and longer service life

-Noise less than 75dB, easy to maintain

Applictioin of tumbler screen.
1.Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, medicine powder, granules.

2.Food industry: sugar powder, starch, salt, rice, milk powder, egg powder, sauce, syrup.

3. Metallurgy, Mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.

4. Medical industry: all kinds of medicine

5. Waste treatment: disposed oil, disposed water, disposed dye waste water.

Model	Diameter(mm)	Screen area(M2)	Screen inclination	Power(kw)
PLYS-600	600	0.21	1-5 degree	0.25
PLYS-1000	1000	0.66	1-5 degree	1.5
PLYS-1200	1200	0.98	1-5 degree	2.2
PLYS-1600	1600	1.81	1-5 degree	4
PLYS-2000	2000	2.8	1-5 degree	4
PLYS-2400	2400	4.15	1-5 degree	5.5
PLYS-2600	2600	5.31	1-5 degree	7.5

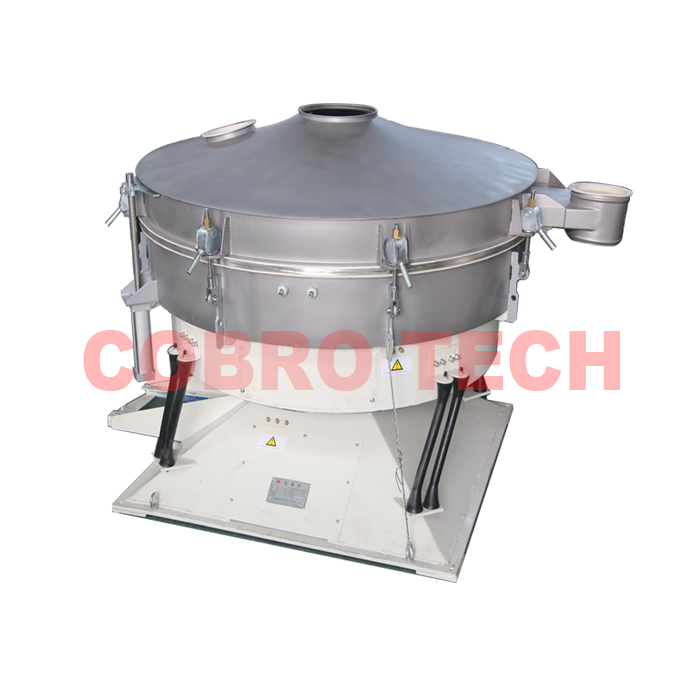

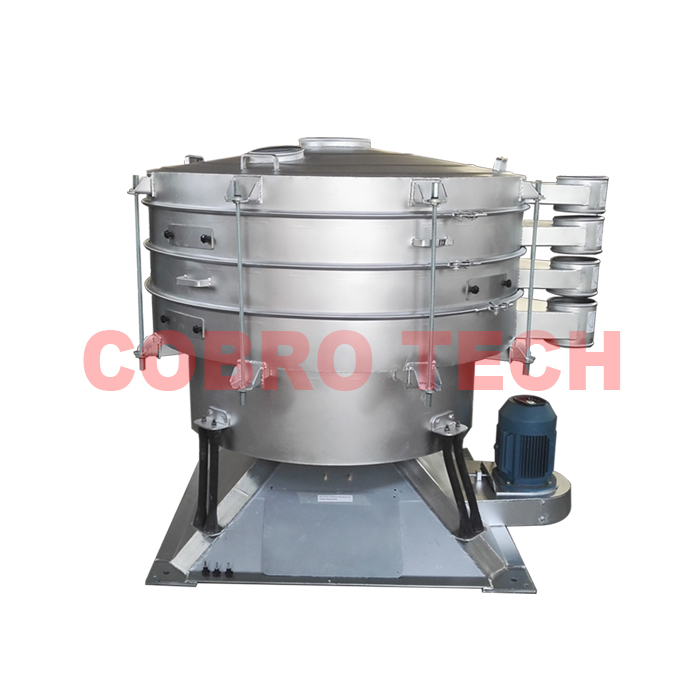

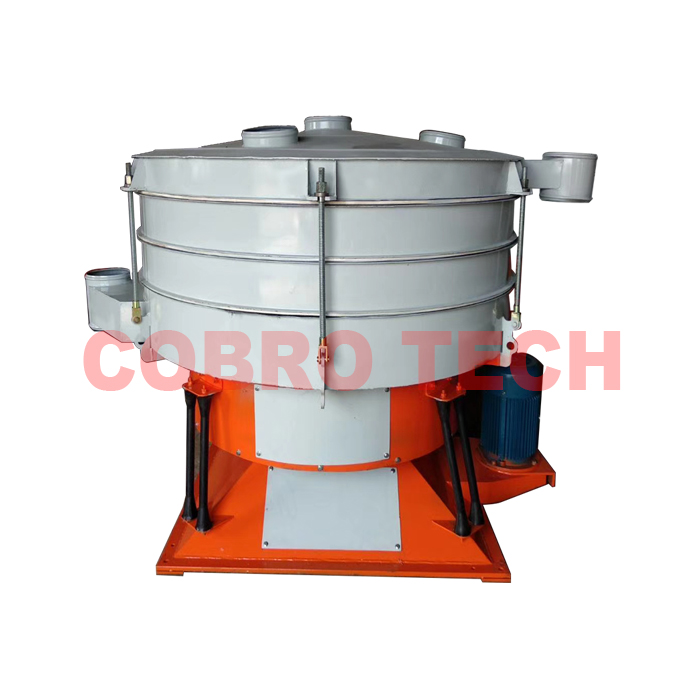

Detailed picture:
