Principle of the structure.
The PLZP flow thru separator can handle large capacity of the big size and smallsize grading operation.Double engineers mounted on opposites of the body create
the 3-D motion that allows maximum flow thru of material.This machine is ideally
suited for prepackaging screening or scalping in many food ,pharmaceutical and
chemical applications,as well as for bulk bag unloading and screening of raw
ingredients,
The motion trace of the material can be changed by adjusting the phase angle of
the hammer to satisfy different need.And different exciting force can be agined
with diffeent balance weight of the hammer.
Features:
Model
Diameter(mm)
Mesh number
Amplitude(mm)
Power(Kw)
PLZP 600
600
4-200
2-4
0.1kw*2
PLYZP800
800
4-200
2-4
0.2kw*2
PLZP 1000
1000
4-200
2-4
0.2kw*2
PLZP 1200
1200
4-200
2-4
0.2kw*2
PLZP 1500
1500
4-200
2-4
0.4kw*2
PL ZP 1800
1800
4-200
2-4
0.6kw*2
PLZP 2000
2000
4-200
2-4
1.1*2
1.Low profile
2.Large handling capacity
3.Low power consumption
4.Automatic discharge the oversize materials
5.Easily to replace the screen, simple operation
6.Feed inlet and discharge oulet on same centerline.

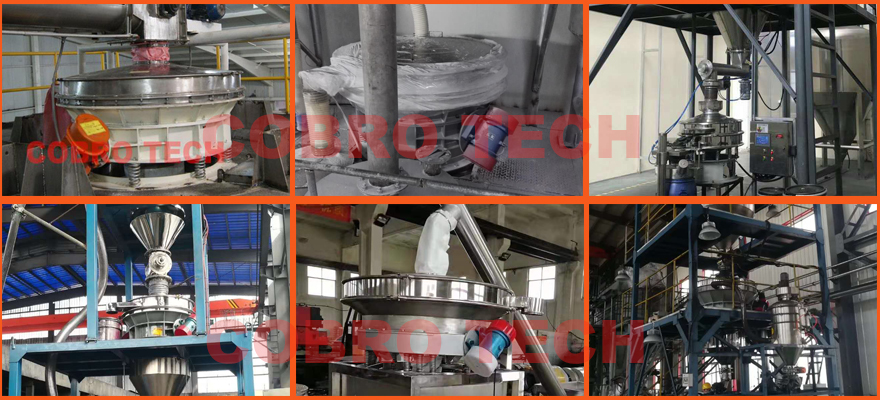

Onsite Picture
